Description

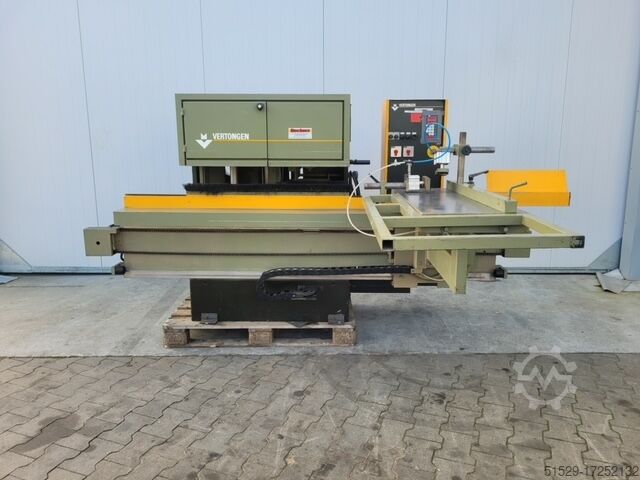

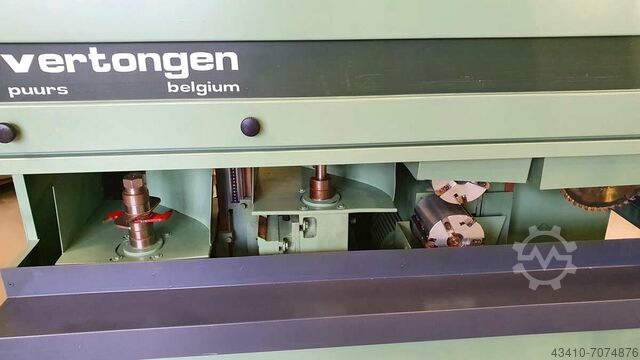

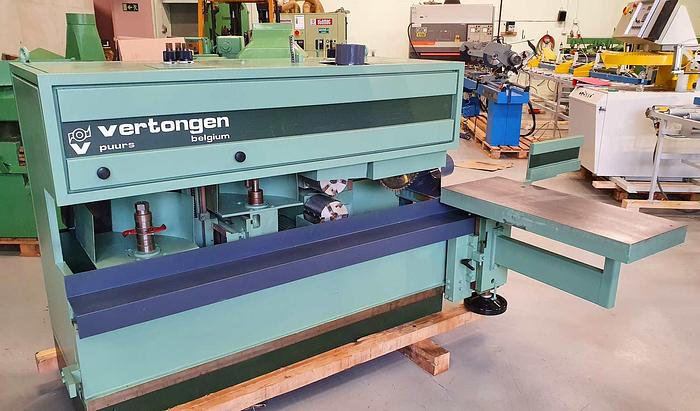

The Vertongen Tenoning Machine, model P04, with serial number 5811, was manufactured in 1979. It’s a woodworking machine designed for creating tenons, and this specific machine is noted for being in excellent condition, originating from a vocational school in Finland.

Here’s a more detailed breakdown:
  • Type: Single-end tenoner.
  • Manufacturer: Vertongen.
  • Model: P04.
  • Year of Manufacture: 1979.
  • Serial Number: 5811.
  • Condition: Excellent, from a vocational school.
  • Features:
    • Automatically adjustable tenoning.
    • Saw unit with a maximum cutting height of 130mm.
    • Spindle diameter of 30mm and 3000rpm, with a 400mm saw blade.

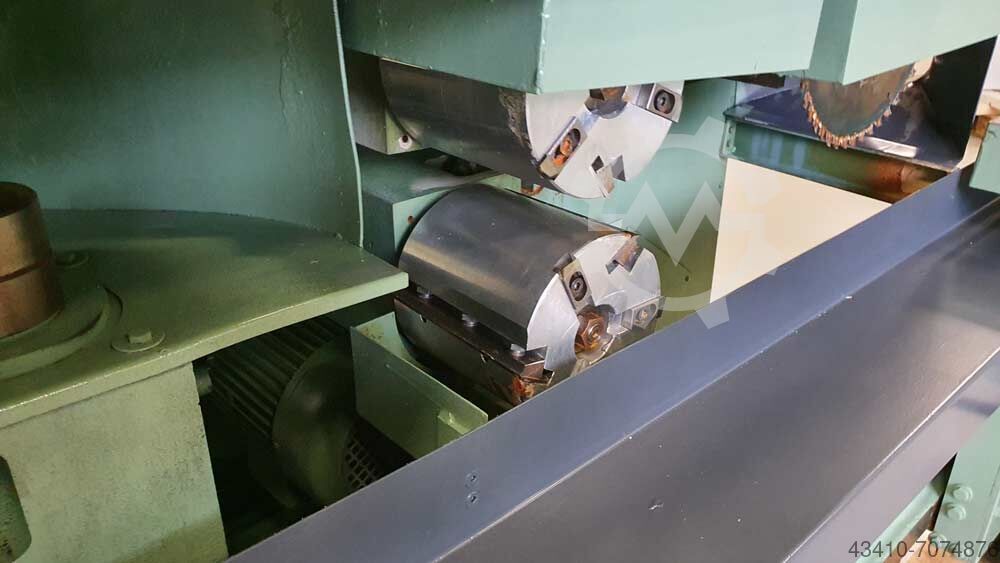

    • Two horizontal cutter blocks with a diameter of 160mm and a spindle diameter of 40mm at 4500rpm.

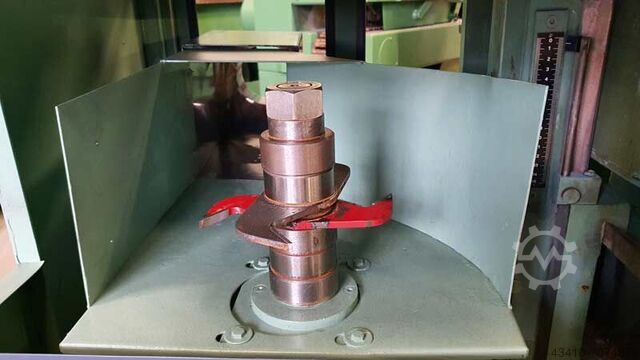

    • Two vertical spindles with a 40mm diameter and a working height of 160mm at 4000rpm.
    • Adjustable spindles in both horizontal and vertical directions.
    • Tenoning carriage measuring 1000x280mm.
    • Sliding guide of 2400mm.

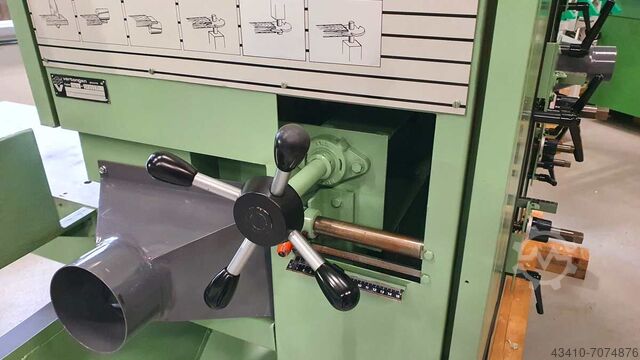

    • Includes a manual pressure and fence system.
    • Requires a 380V 3-phase 50Hz power supply.
    • Extraction needs (dust collector) of 2400 m3/h.
    • Approximate weight of 1100 kg.
